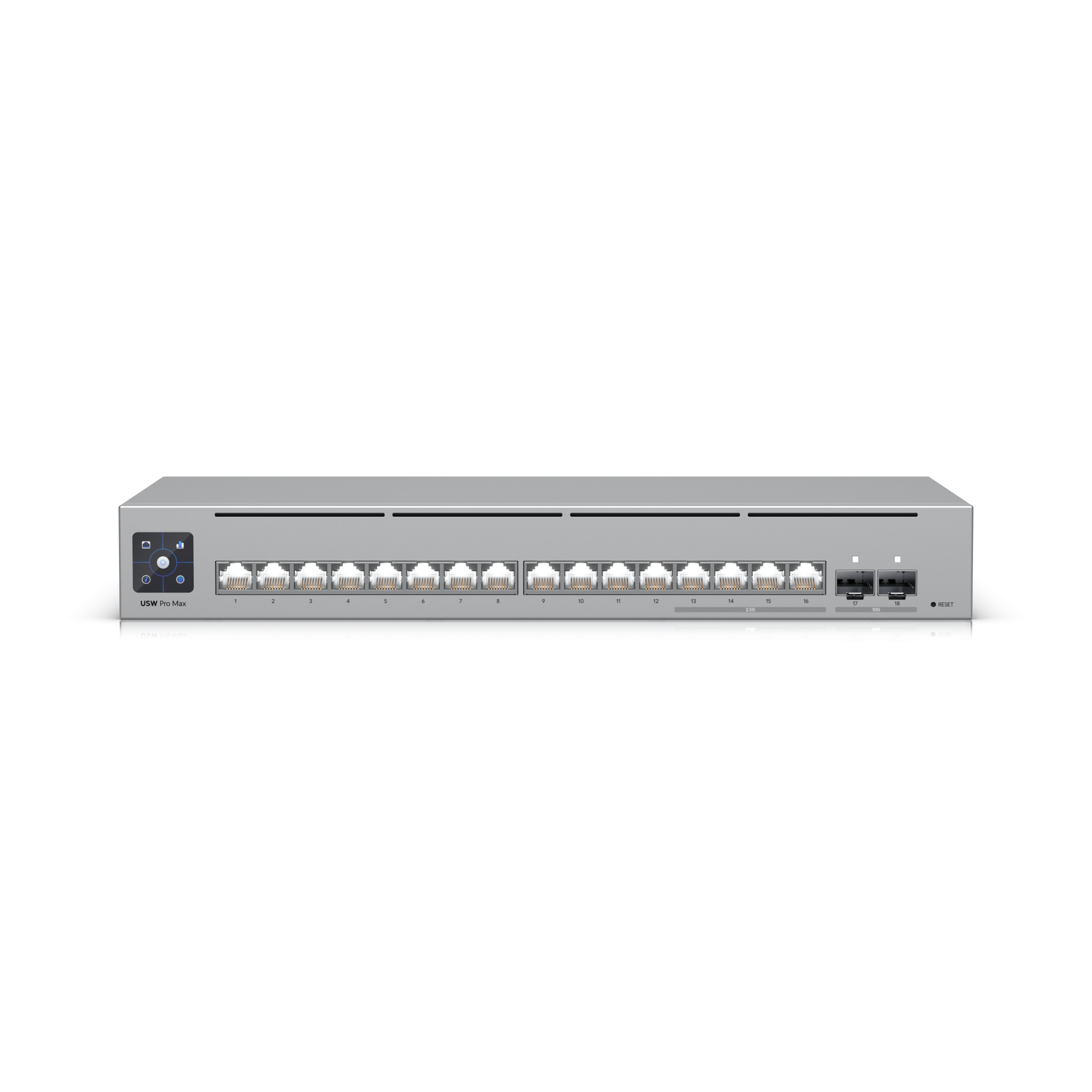

Ubiquiti Switch Pro Max 16 PoE Switch, USW-Pro-Max-16-PoE (180W)

Original price was: 95,000.00৳ .Current price is: 90,000.00৳ .

Ubiquiti USW-Pro-Max-16-PoE (180W)

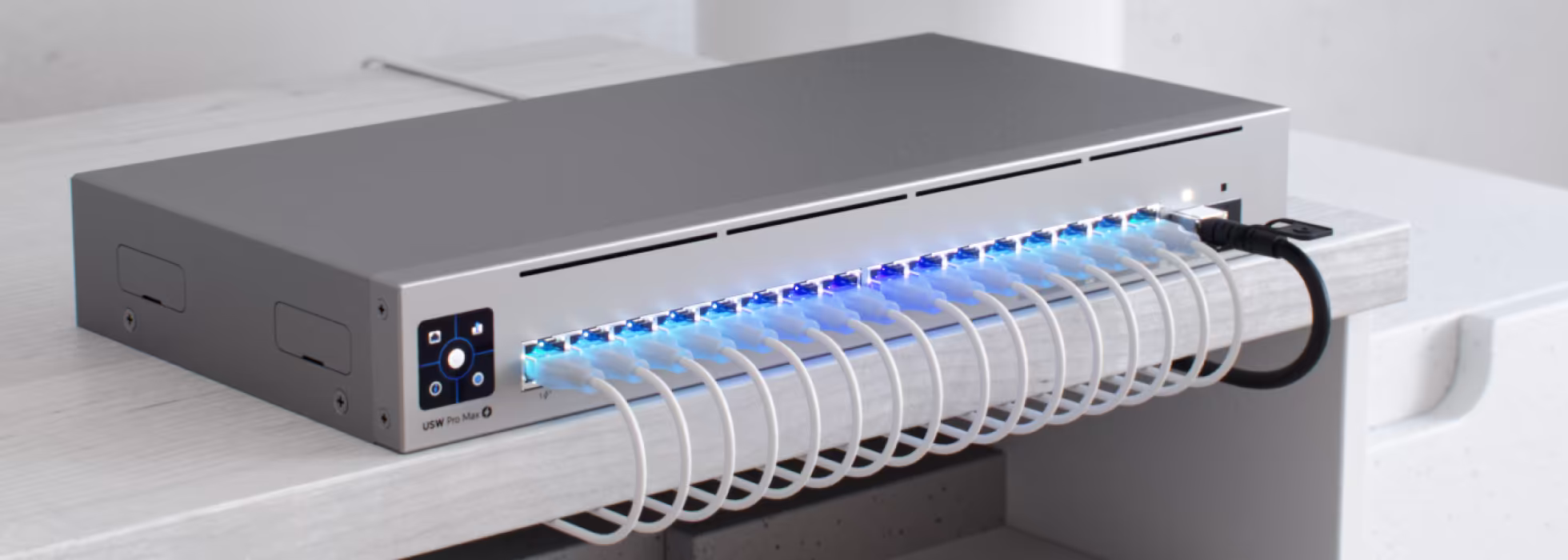

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

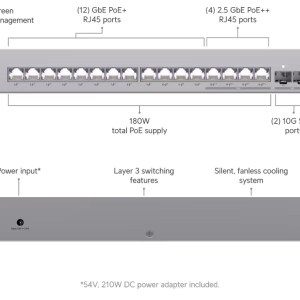

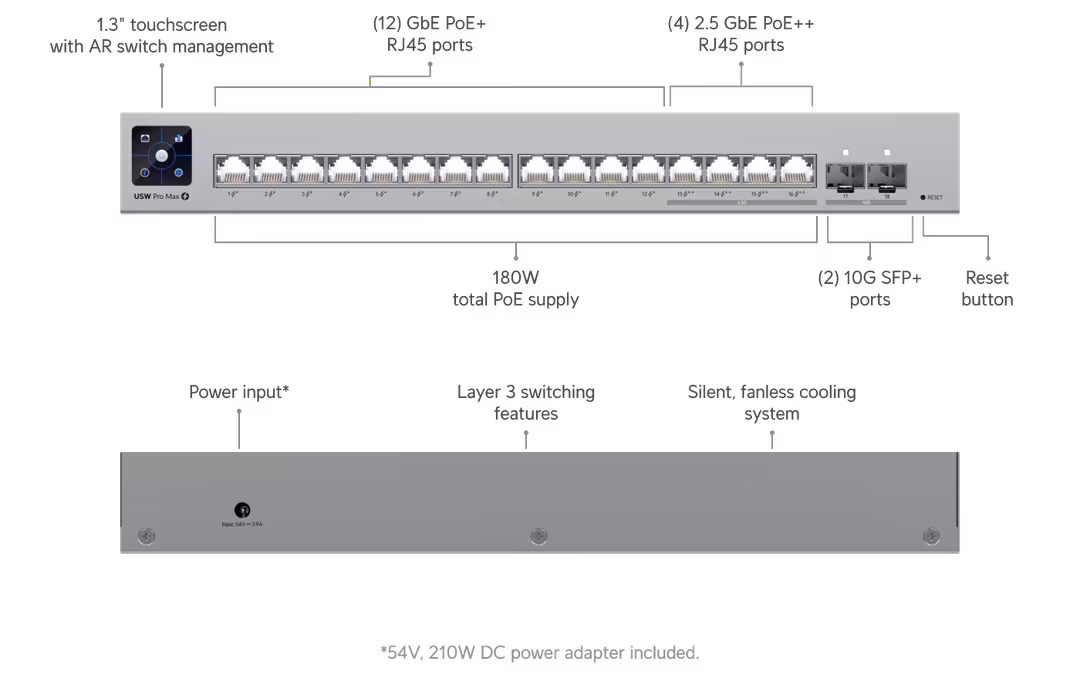

(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability

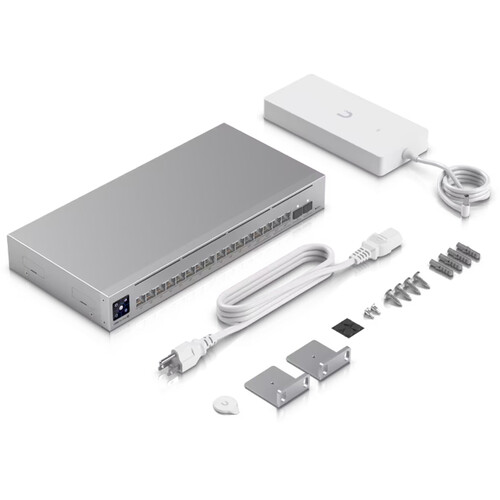

Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system

Specifications

Mechanical
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″)
Weight	2.1 kg (4.6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports
PoE interface	(12) PoE/PoE+ (Pins 1, 2+; 3, 6-), (4) 60W PoE++ (Pair A 1, 2+; 3, 6-), (Pair B 4, 5+; 7, 😎
Total non-blocking throughput	42 Gbps
Switching capacity	84 Gbps
Forwarding rate	62.496 Mpps
Power method	DC adapter
Power supply	54V, 210W
Max. power consumption	30W (Excluding PoE output)
Total available PoE	180W
Max. PoE wattage per port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W
Voltage range PoE mode	PoE: 44—57V, PoE+/PoE++: 50—57V
LCM display	(1) 1.3″ touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping, STP / RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP, Multicast/broadcast rate limiting, MAC blocking, Flow control, Jumbo frames, etc.
Layer 3 features	DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing, Static routing, Network isolation, ACLs
Etherlighting™	Ethernet locating, Speed/link, Native VLAN/network
SFP+	Locating, Speed/link, Native VLAN/network
Application Requirements	UniFi Network Version 8.1.127 and later
