General | ||
Dimensions | Φ 208 mm × 345 mm | |
Weight | 3.3Kg | |
Pan/Tilt/Rotation | Movement Range (Pan): 360° endless Movement Range (Tilt): From -15° to 90° (auto-flip) Tilt Speed: Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s |
|
Operating Conditions | -30°C to 65°C (-22°F to 149°F) | |
Power Supply | 24 VAC and Hi-PoE,Max.: 30 W (Max. 10 W for IR) | |
Camera | ||
Image Sensor | 1/2.8″ progressive scan CMOS | |
Electronic Shutter Speed | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s | |
Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR | |
IR Distance | 150 m | |
Lens | ||
Focal Length | 4.8 mm to 120 mm | |
Max Aperture | F1.6 to F3.5 | |
Angle of View | Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele) |
|
Video | ||
Resolution | 1920 × 1080 | |
Frame Rate | 50Hz: 25fps | |
Video Output | 32 Kbps to 16384 Kbps | |
Day/Night | IR Cut Filter | |
Interface | ||
Audio Interface | Alarm Output: 1-ch alarm output Alarm Input: 2-ch alarm input Audio Input: 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10% Audio Output: 1-ch audio output, line level, impedance: 600 Ω |
|
Video Interface | Network Interface: 1 RJ45 10 M/100 M Ethernet, Hi-PoE | |
Special Features | ||
Features | Basic Event Detection: Motion Detection, Video Tampering Detection, Exception Smart Detection: Smart Record: ROI: |
|
Warranty | ||
Warranty | 1 Year |
Brand
Hikvision

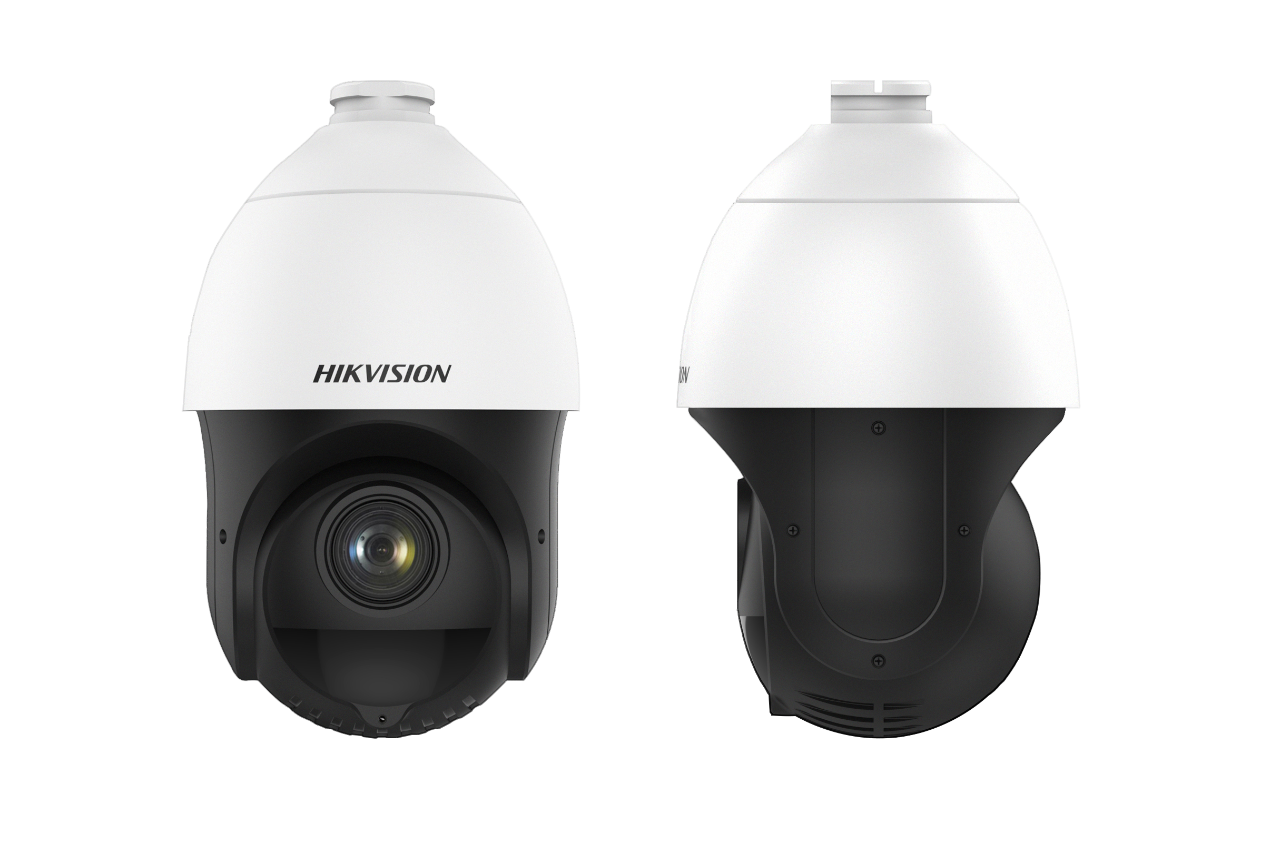

Be the first to review “Hikvision DS-2DE5225IW-AE (2.0MP) PTZ Dome IP Camera” Cancel reply
