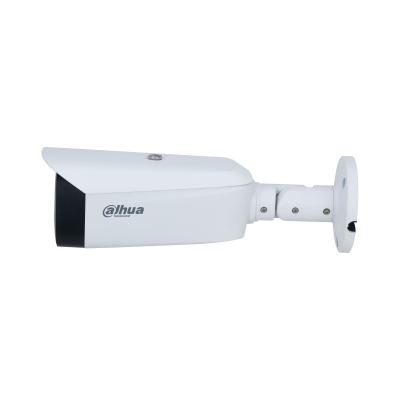

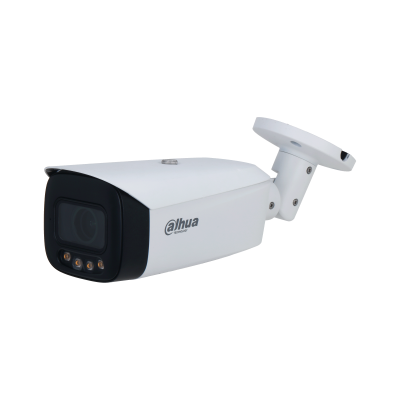

Dahua 4MP Full-color Vari-focal Warm LED Bullet WizMind Network Camera IPC-HFW5449T1-ZE-LED

Camera

Image Sensor

1/1.8” CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 Lux@F1.0

S/N Ratio

> 56 dB

Illumination Distance

70 m (229.66 ft)

Illuminator On/Off Control

Auto; Manual; Zoomprio

Illuminator Number

4 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: -20°–90°

Rotation:0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ16

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.0

Field of View

Horizontal: 115°–48°

Vertical: 59°–27°

Diagonal: 142°–55°

Iris Type

Auto

Close Focus Distance

1.75m(5.74 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

60.4 m

(198.2 ft)

24.1 m

(79.1 ft)

12 m

(39.4 ft)

6 m

(19.7 ft)

T

128.6 m

(421.9 ft)

51.4 m

(168.6 ft)

25.7 m

(84.3 ft)

12.8 m

(42.0 ft)

Smart event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps

H.265: 3 kbps–20480 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Defog

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270°

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8 and later

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC (±30%)/PoE (802.3af)/ePoE

Power Consumption

Basic: 2.4 W (12 VDC); 3.4 W (PoE)

Max. (H.265 + 3 streams + intelligence + LED): 7.6 W (12 VDC); 9.3 W (PoE)

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

288.4 mm × 94.4 mm × 84.7 mm

(11.4″ × 3.7″ × 3.3″) (L × W × H)

Net Weight

1.0 kg (2.2 lb)

Gross Weight

1.23 kg (2.7 lb)
