Sale!

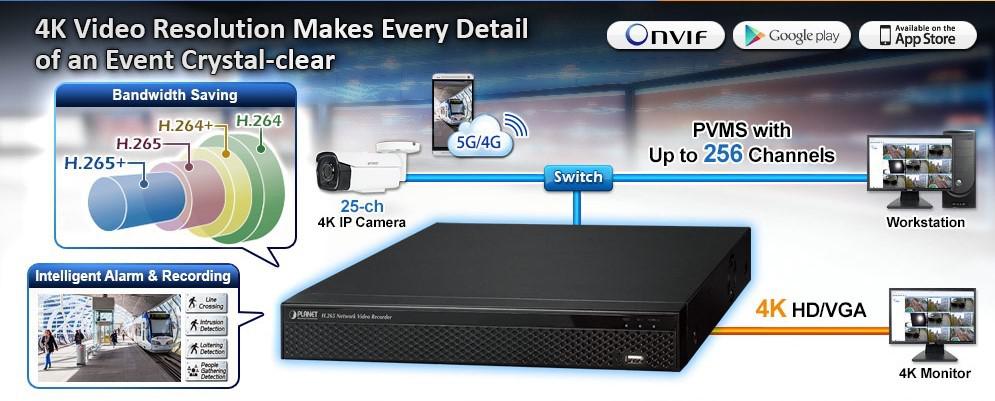

NVR-2500_eDM4

NVR-2500_eDM4

Brand:PLANET

PLANET NVR-2500

Original price was: 50,000.00৳ .Current price is: 47,000.00৳ .

Categories: Camera, NVR, Security

Hardware
Ethernet	1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB Interface	2 x USB 2.0
Video Interface	1 x HDMI, 1 x VGA
Audio Interface	1x Input, 1x Output
Storage Device	2 x Hard Disk Interface (3.5″ SATA), up to 16TB capacity
Camera
Max. Channels	25-channel IP cameras
Incoming Bandwidth	120MB
Video
Compression	H.264/H.265/H.264+/H.265+
Resolutions	4K (3840×2160) 5MP (2592×1944) 4MP (2688×1520/2560×1440) 3MP (2048×1536) 1080P (1920×1080) 960P (1280×960) 720P (1280×720) D1 (720×576/720×480)
Recording Rate (PAL/NTSC)	4K@12×25fp/30fps 5MP@20×25fp/30fps 4MP@25x25fp/30fps 3MP@25×25fp/30fps 1080P@25×25fp/30fps 960P@25×25fp/30fps 720P@25×25fp/30fps D1@25×25fp/30fps
Recording Mode	Manual\Timer\Motion Detection\Smart Alarm
Audio
Audio Type	2-way audio
Input	1 Port RCA
Output	1 Port RCA (Linear, 1kΩ)
Audio Bit Rate	64kbps
Audio Compression	G711u, G711a, ADPCM_DVI4
Local Display
HDMI	4K (3840 × 2160)/30Hz 1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz
VGA	1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz
Display Split	25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
Digital Zoom	Yes
OSD	Camera Title, Time, Recording, Motion Detection, Event Alarm
Alarm
Motion Detection	25 Channels, MD Zones: 396 (22 × 18)
Trigger Events	Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
Playback and Backup
Local Sync Playback	1CH 4K@30fps 1CH 5MP@30fps 2CH 4MP@30fps 2CH 3M@30fps 4CH 1080P@30fps 4CH 960P@30fps 4CH 720P@30fps
Decode Capability	1CH 4K (3840×2160) @30fps
Remote Sync Playback	Yes
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection, and Event Alarm
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup Mode	USB Device/Network
Network and Configuration
Network Functions	TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P
Cloud Support(P2P)	Cloud (Google, Dropbox)
Application Programming Interface	ONVIF compliant
Management
Web Brower	IE8~11, Google Chrome, Firefox , Mac Safari
PVMS	Support Windows 7/ Windows 8/Windows 10/Mac OS
App	Yes (Android, IOS with P2P QR code)
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese
Environment
Power	DC 12V/4A
Operating Temperature	-10~55 degrees C /10~90%
Humidity	10~85% RH
Weight	3.5kg (without HDD)
Dimensions (W x D x H)	310 x 295 x 46 mm
