Sale!
Brand:Dahua

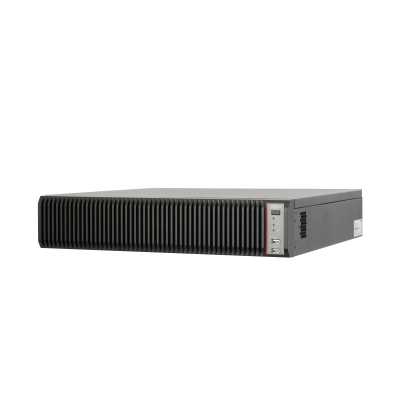

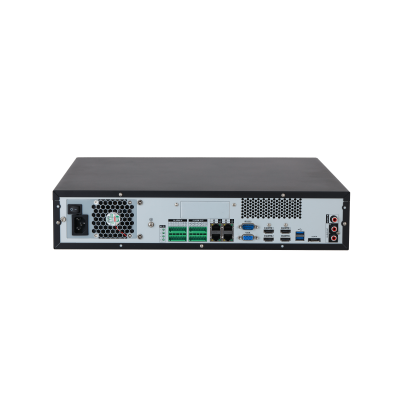

Dahua IVSS7108-2M 2U 8HDDs WizMind Intelligent Video Surveillance Server

Original price was: 350,000.00৳ .Current price is: 330,000.00৳ .

2U 8HDDs WizMind Intelligent Video Surveillance Server

> Industry embedded micro-controller
> Max 400 Mbps incoming bandwidth
> 128-channel IP video access
> Up to 24-channel AI IVS
> Up to 24-channel face recognition with normal IPC
> Up to 80-channel face recognition with face detection IPC
> Up to 24-channel video metadata
> Up to 50 face databases with 500,000 face pictures in total
> Supports RAID 0/1/5/6/10/50/60
> 4 HDMI/1 VGA video output
Categories: ,
System
Main Processor Industry embedded micro-controller
Operating System Embedded Linux OS
Operation Interface WEB (PCAPP), local GUI
AI Applications
AI by Camera Face detection, face recognition, video metadata,

IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, crowd gathering, loitering, parking, and fence-crossing),

people counting, smoking detection, call detection
AI by Device face detection, face recognition, video metadata,

IVS (tripwire, intrusion,crowd gathering, loitering detection, parking detection), plate comparison
IVS
IVS Performance (AI by Device) (Channel Number) Advanced model: 24-channel
IVS Performance (AI by Camera) (Channel Number) 64-channel
Human Face Detection
Human Face Properties Supports 6 properties: Gender, age, glasses, expression, mouth mask, and beard
Face Detection Performance (AI by Device) (1080P) (Channel Number) 24-channel
Face Detection Performance (AI by camera) (Channel Number) 80-channel
Human Face Recognition
Face Database Capacity 50 face databases with 500,000 face pictures in total
Human Face Recognition Performance (AI by Device) (1080P)(Channel Number) 24-channel with normal IP camera

80-channel with face detection IP camera (Totally 80

face pictures analyzed per second)
Human Face Recognition Performance (AI by camera) (Channel Number) 80-channel
ANPR
Plate Database Capacity 50 plate databases with 500,000 plate numbers in total

Supports allowlist and blocklist
Plate Detection Performance by ITC Camera (Channel Number) 32-channel
Video Metadata
Human Body Properties ender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella,hat, hairstyle, direction, hold a baby, mouth mask
Vehicle Properties Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region
Non-motorized Vehicle Properties Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve length, top color, hat, hair style, mouth mask
Metadata Performance (AI by Device) (1080P) (Channel Number) 24-channel
Metadata Performance (AI by camera) (Channel Number) 32-channel
Video Parameters
Remote Connection 128-channel
Network Bandwidth Incoming bandwidth: 400 Mbps
recording bandwidth: 320 Mbps
outgoing bandwidth: 96 Mbps
Resolution 32MP/24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/CIF/QCIF
Decoding Capability 1-channel 32MP/1-channel 24MP/2-channel 16MP/5-channel 12MP (20 fps)/6-channel 12MP (15 fps)/5-channel 8MP (30 fps)/10-channel 8MP (15 fps)/6-channel 6MP(30 fps)/8-channel 5MP(30 fps)/9-channel 5MP (25 fps)/10-channel 4MP (30 fps)/15-channel 4MP (20 fps)/16-channel 3MP (25 fps)/10-channel 1080p (60 fps)/20-channel 1080p (30 fps)/30-channel 720p (30 fps)
Video Output 1-channel VGA output, 4-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. Supports 4K output
Multi-screen Display Customized display

Max. 36-channel local live view

Max. 16-channel PCAPP live view
Third-party Support Onvif; RTSP; Sony; Panasonic; Axis; Arecont; Pelco; Canon; Samsung
Operating System Embedded Linux OS
Operation Interface WEB (PCAPP), local GUI
Compression
Video Compression Smart H.265+; Smart H.264+; H.265; H.264
Audio Compression G.711A; G.711U; PCM; G726
Network
Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone DMSS
Interoperability ONVIF (Profile S, T and G); CGI; SDK
Browser Chrome; PCAPP; IE9 or higher; Firefox
Network Mode NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search Search video detection/manual record/IO alarm/intelligent event/all record file
Storage Medium Internal HDD
Backup Method HDD, peripheral USB storage device
Playback Function Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play

Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off
Storage
HDD Group 8
RAID RAID 0/1/5/6/10/50/60
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction
Intelligent Alarm Human face detection, human face recognition,entries frequency, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call
Alarm Linkage Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input 1-channel, RCA port (reserved)
Audio Output 2-channel, RCA port, speaker output, audio linkage output
Alarm Input 16-channel
Alarm Output 8-channel
Internal HDD 8 slots, SATA3.0. Max. 16T/HDD
eSATA 1 port
SAS N/A
RS-232 1 port, for debug or transparent COM data
RS-485 1 port, control peripheral PTZ and so on

Supports various protocols
USB 4 ports

2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel
HDMI 4 ports; support 4K output
VGA 1 ports
Network 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
Power 1 port
PoE N/A
General Parameters
Power Supply 100V AC–240V AC 50-60Hz
Power Consumption 38W (without HDD, idling)

105W (all HDDs connected)
Net Weight 7.66 kg (16.89 lb)
Gross Weight 10.24 kg (22.58 lb)
Dimensions

(W × L × H)

 Chassis: 439.7 mm × 446.2 mm × 89.0 mm

(17.31 ” × 17.57 ” × 3.50 “)
Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8 mm (with feet mat) (18.96 ” × 17.57 ” × 3.57 “)
Packaging Dimensions

(W × L × H)

 With Packaging: 562 mm × 599 mm × 235 mm

(22.13 ” × 23.58 ” × 9.25 “)
Protection box: 491 mm × 584 mm × 631 mm

(19.33 ” × 22.99 ” × 24.84 “)
Operating Conditions 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Strorage Conditions 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1

FCC: Part 15 Subpart A

UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
